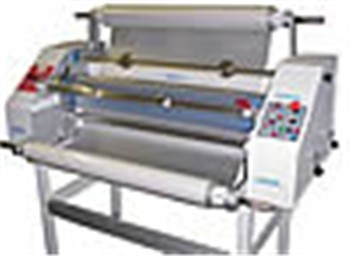

The “Production” 44” Roll Laminator is the newest addition to our line of laminators designed for the wide format digital print market.With a top speed of 30 FPM and a sustainable laminating speed of 8-10 FPM the “Production" 44” Roll Laminator performs faster than most competitive units. It is easy to thread and has a clear Plexiglas safety shield that provides the operator with visual access to the laminating process.
Standard features include a built-in release liner take-up, the release liner allows for the application of any pressure-sensitive laminate or mounting adhesive that requires the removal of a protective liner.
Variable temperature controls make this laminator perfect for almost any application up to 44" wide including thermal laminating film, pressure-sensitive materials, pre-mask, and mounting materials.
A sturdy extruded aluminum stand is included with machine.
Product Specs:
Max. sheet size: 44" wide
Speed: 0-30 FPM
Laminating pull Roller Diameter: 3-1/8"
Supply Roll Core Size: 3"
Take up Roll Core Size: 3"
Recommended Film: Up to 10 MIL (hot/cold)
Max Laminating Thickness: 1/2"
Max Film roll Diameter: 12"
Dimensions: 62"W x 34"D x 60"H (26" H without stand)
Shipping Dimensions: 72"L x 39" H x 43"W
Weight/Shipping Weight: 550lbs/850lbs
Motor: 1/4 Horse D/C
Electrical (single phase): 208-240V single phase | 50-60 cycle 30 amps
Electrical Connector: Nema 6-30p
Heater: 5500 watts
