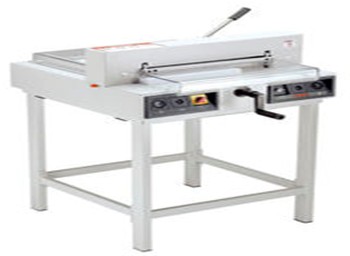

The Triumph Semi-Automatic 16-3/4" Paper Cutter offers the MBM exclusive SCSTM safety cutting system package, soligen steel blade patented lever-activated fast-action clamp, digital display for precise back gauge positioning and bright LED optical cutting line.
Features:
SCS (Safety Cutting System) package includes:
* transparent front and rear safety guards (electronically controlled front guard locks automatically while cutting)
* main switch and safety lock with key
* electronically controlled
* true two-hand operation
* 24 volt control (low voltage)
* patented IDEAL safety drive
* automatic blade return from any position
* disc brake for instant blade stop
* blade can be changed from front of machine without removing covers
* blade changing device covers cutting edge of blade
* external blade depth adjustment and cutting stick replacement
Adjustable, hardened steel blade guides
Patented, lever-activated, fast-action clamp
Solid steel blade carrier
Spindle-guided back gauge with calibrated crank
All-metal construction
Cutting width: 16-7/8"
Cutting height: 1-1/2"
Narrrow cut: 1-3/8"
Cutting length behind blade: 15-5/16"
Table length in front of blade: 9"
Motor: 3/5 hp
Power supply: 115 V, 60 Hz
Dimensions (D x W x H): 27-1/4" x 25-1/4" x 14-1/8"; 41-1/2" H with stand; 42-1/2" H with cabinet
Shipping weight: 191 lbs.; 217 lbs.with stand, 278 lbs. with cabinet
